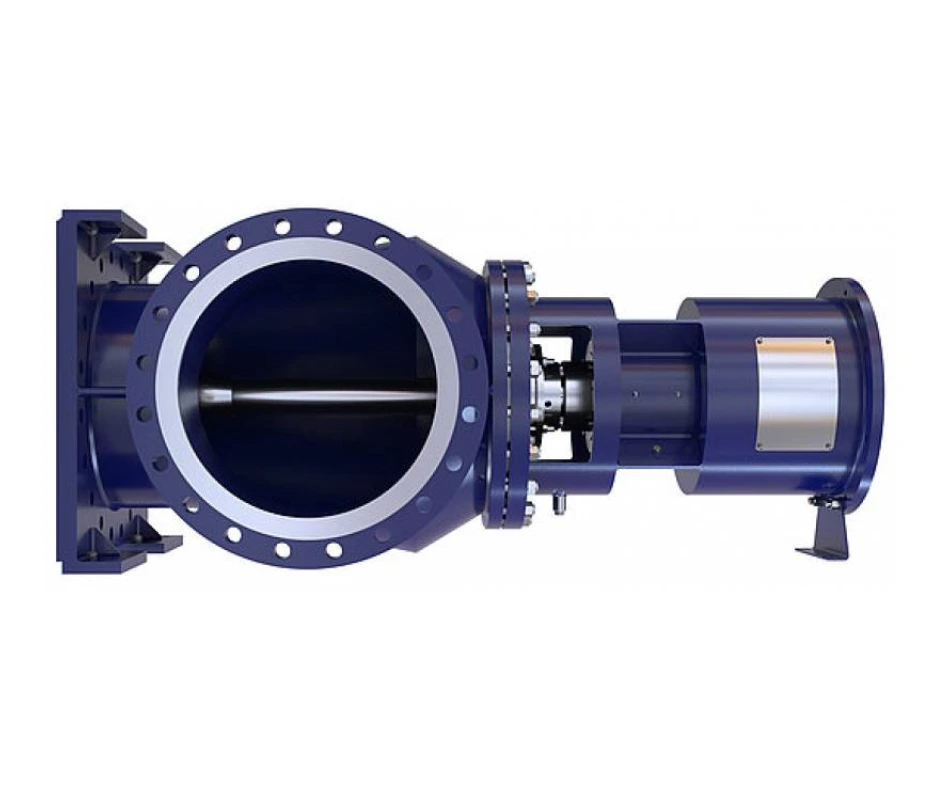

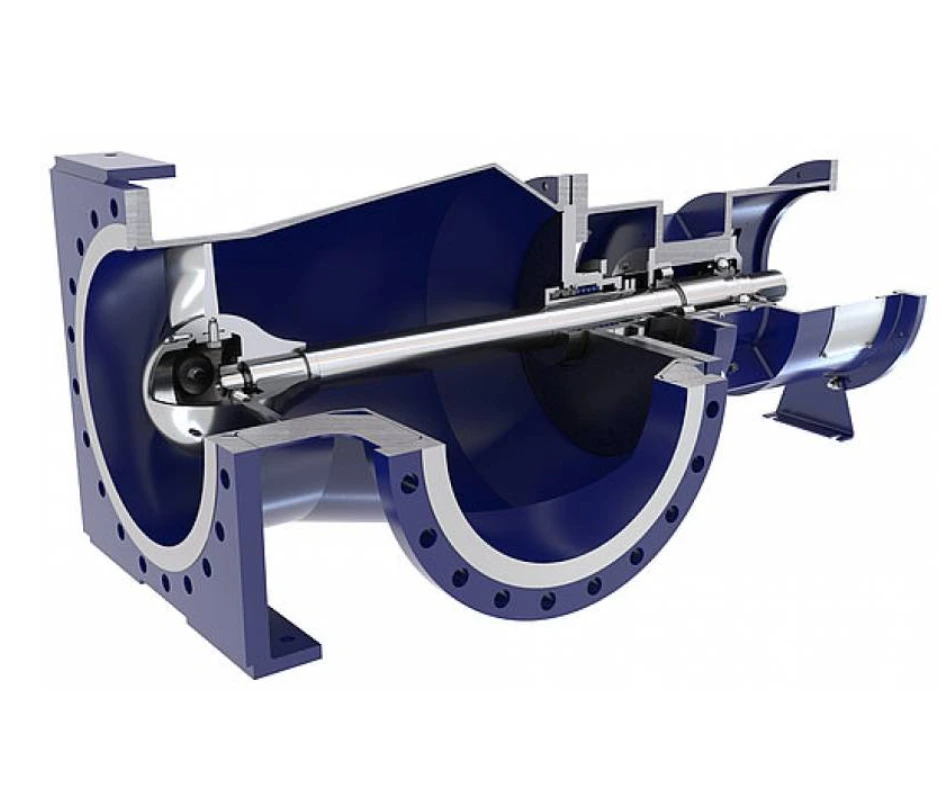

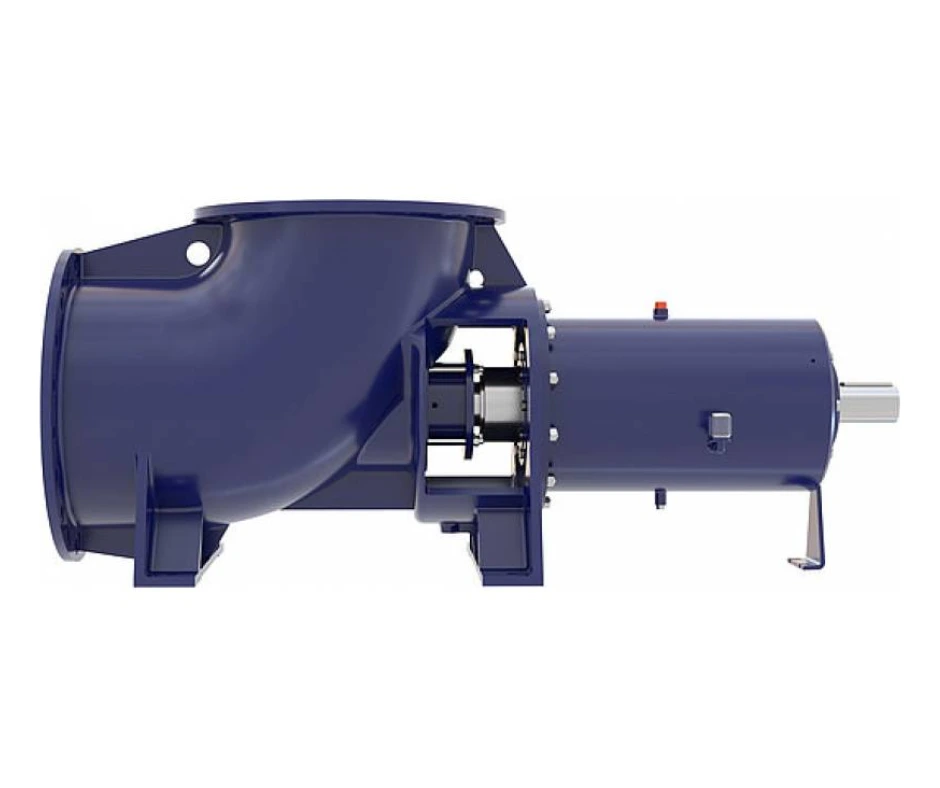

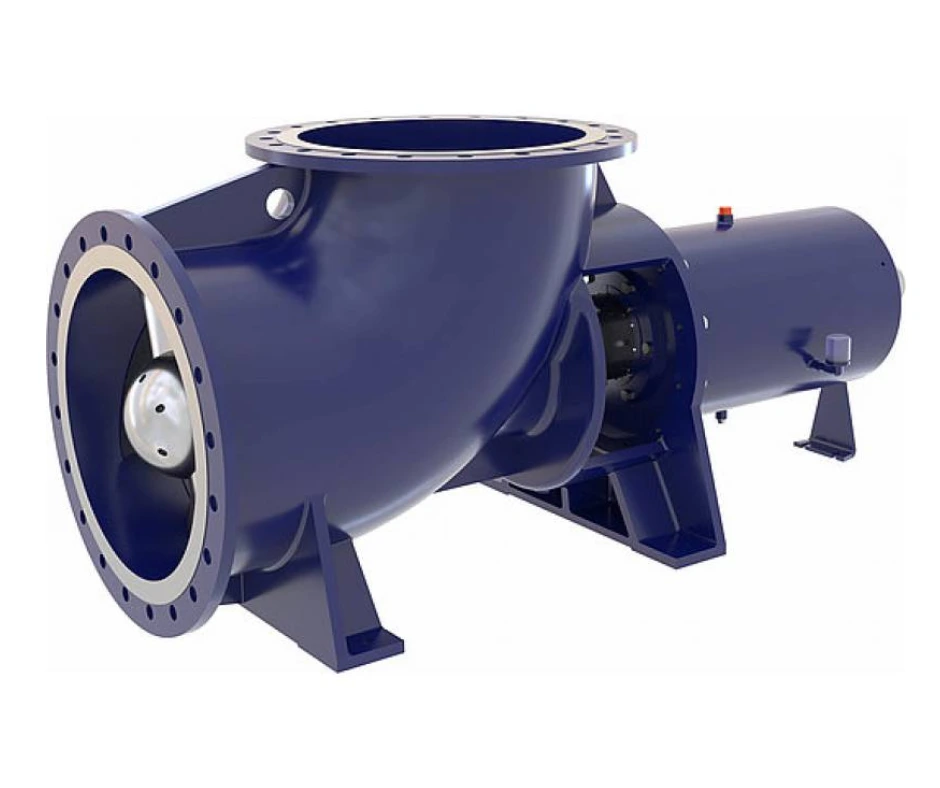

Axial flow centrifugal pump (RPROP)

  • Design : Axial flow pump
  • Material : Metal
  • Size : DN 200 – DN 700
  • Impeller : Adjustable propeller blades or inducer
  • Qmax. = 8,500 m3/h
  • Hmax. = 7 m
  • Temperature : -20 °C to 150 °C
  • Nominal Pressure : 6 bars

Norm
ISO 5199
Type
Horizontal, single-stage
Operating direction
Operation in both directions of flow is possible
Construction
Pipe elbow in welded or casted design (standard or FEM optimized)
Impeller
Adjustable propeller blades or inducer
Bearing lubrication
Oil lubrication
Installation versions
Base plate, base frame, steel structure or stilt mounting
Motor coupling
Direct coupled, with V-belt drive, with cardan shaft or with gear-box drive
Ambient temperature
-20°C to 60°C
Solid content limit value
approx. 35 %

Crystal suspensions, brine, seawater, cellulose mash, abrasive media, aggressive acids and alkaline solutions.

  • Alloy C1 (2.4686)
  • Austenitic stainless steel 1.4306S
  • Austenitic stainless steel 1.4408
  • Duplex 1.4517
  • Fully austenitic special stainless steel R3020
  • High austenitic stainless steel 1.4529S
  • Higher austenitic stainless steel 1.4652S
  • Flushing in different versions
  • Temperature and vibration monitoring
  • Flange connections according to international standards
  • Thermosyphon system
  • Quench system
  • Pump accessories
