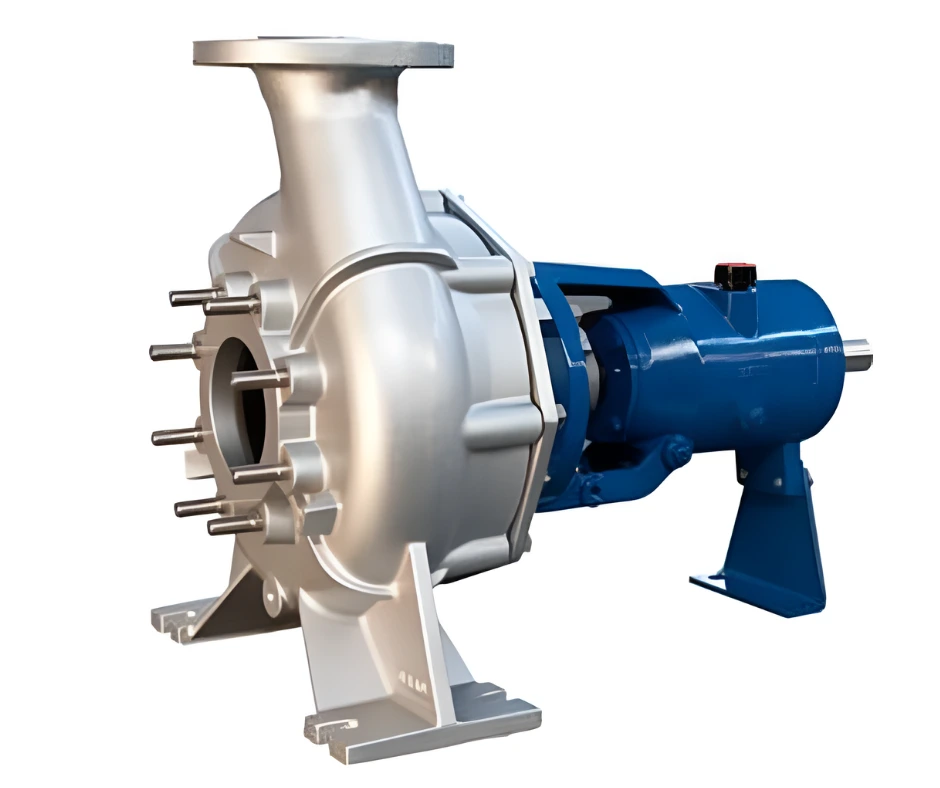

Centrifugal pump with vortex impeller in according to ISO 2858/5199 norms.

Simple and modular construction with bearing bracket in according to ISO 2858-5199 norms. Discharge sizes from DN 32 to DN 250. Large free passage clearance up to 150 mm due to the completely recessed impeller. Heavy duty shaft and bearings. Only 4 bearing brackets for the whole range. Only 1 casing cover fits every seal arrangement.

RC pumps can handle chemical and crystalline suspensions, all viscous liquid, liquid with high concentrations of fibrous suspensions, municipal and industrial wastewater, every kind of sludge. They are also used in textile, tannery, refineries, general industrial service, pulp and paper industry, foodstuffs industry, sugar industry, sea water desalination plants, absorption equipment in environmental engineering, power stations and steel industry.

Technical Specifications
Maximum flow rate: 800m3/h
Maximum head: 60 mwc
Maximum pressure: 10 BAR
Maximum temperature: 180° C

Materials
Standard: AISI 316 – GJL250 Cast Iron
On request: Duplex, Superduplex, AISI 304, AISI 904, Hastelloy.

Hydraulic
Vortex impeller

UNION
Standard: UNI EN 1092-1 PN 1
