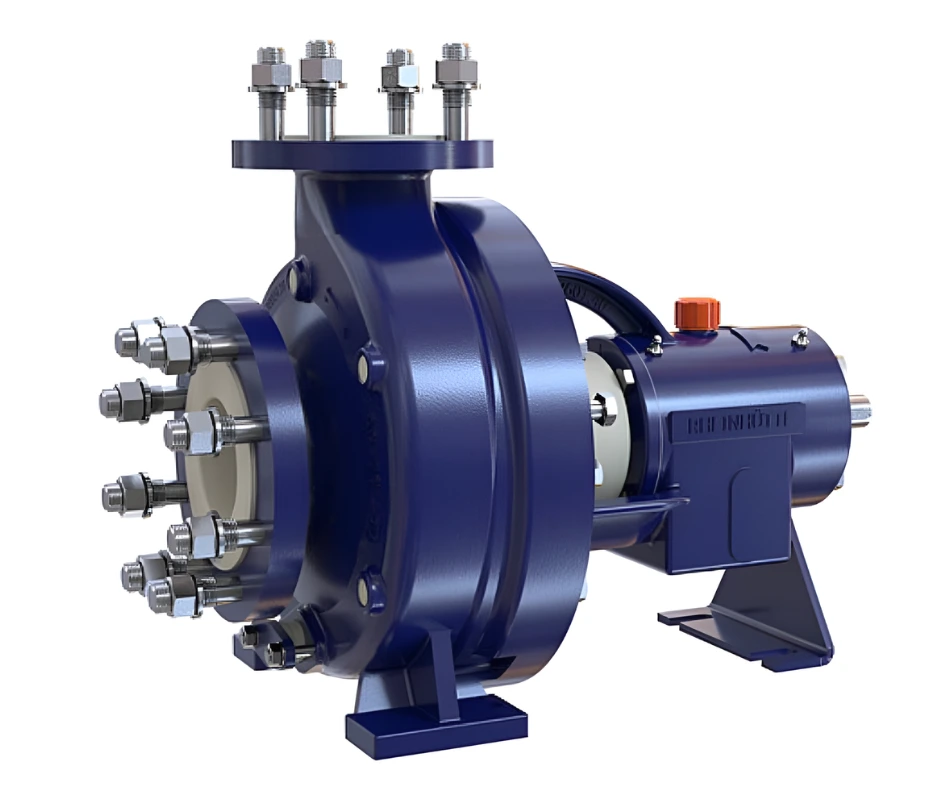

Chemical Pump With PFA Lining (FNP)

  • Design : Horizontal cetrifugal pump
  • Material : Plastics
  • Size : DN 25 – DN 80
  • Impeller : Closed
  • Delivery rate : Qmax. = 70 m3/h
  • Delivery head : Hmax. = 95 m
  • Temperature : -30 °C to 190 °C
  • Nominal Pressure : 16 bar

Norm
ISO 5199, ISO 2858, EN 22858

Type
Horizontal, single-stage

Construction
Back-pull-out design according to ISO 2858

Casing design
Single volute casing

Impeller
Closed

Bearing lubrication
Grease or oil lubrication

Installation versions
Base frame welded or base plate cast

Ambient temperature
-20°C to 60°C

Solid content limit value
approx. 5 %

Suitable for virtually universally use in the chemical and pharmaceutical industry, petrochemicals and general processing technology.

  • Perfluoralkoxi PFA
  • Drain of volute casing
  • Temperature and vibration monitoring
  • Flange connections according to international standards
  • Thermosyphon system
  • Pump accessories
