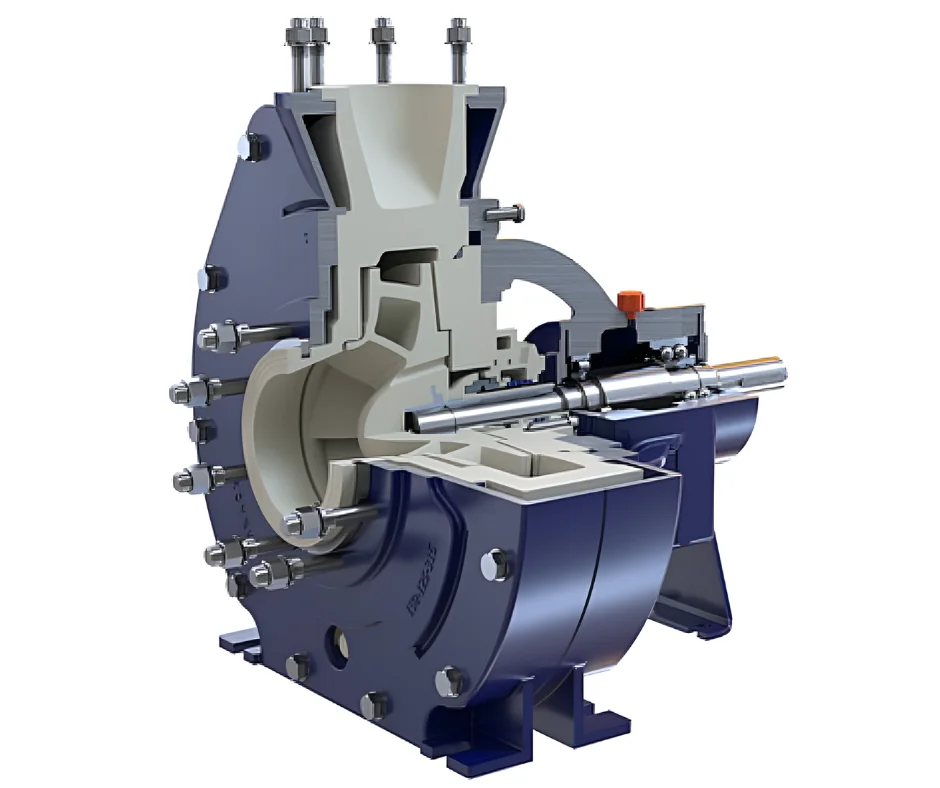

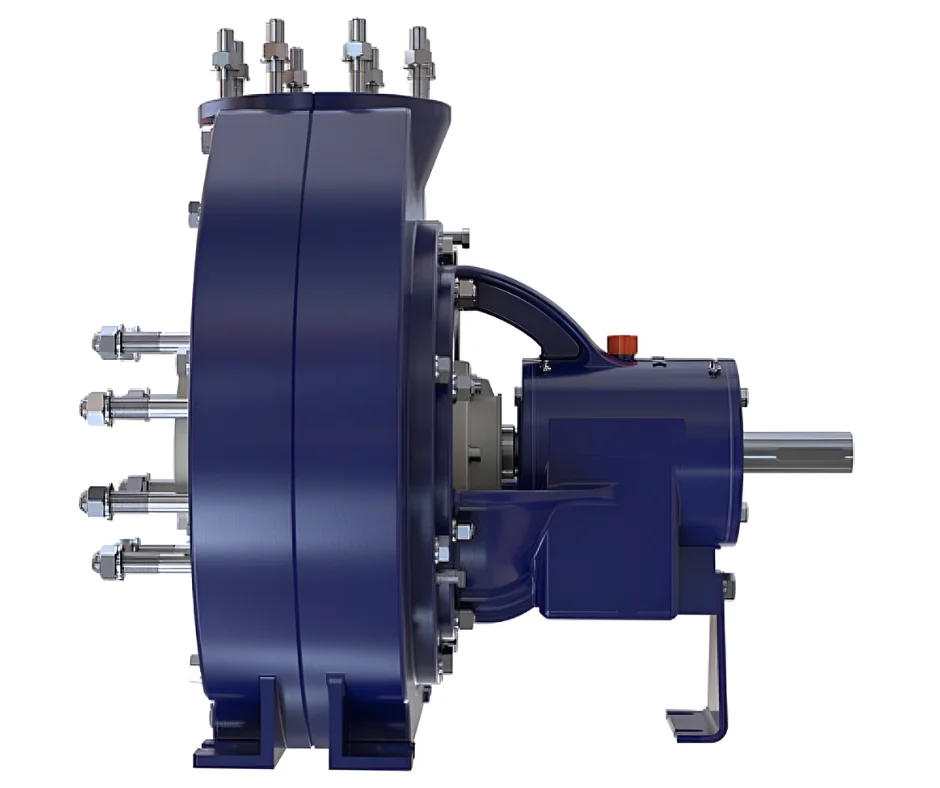

Standardized chemical pump in plastic (RCNKu)

  • Design : Horizontal cetrifugal pump
  • Material : Plastics
  • Size : DN 80 – DN 400
  • Impeller : closed or free-flow impeller (Type RCFKu)
  • Qmax. = 2.500 m3/h
  • Hmax. = 100 m
  • Temperature : -40 °C to 190 °C
  • Nominal Pressure : 16 bar

Norm
ISO 5199, ISO 2858, EN 22858
Type
Horizontal, single-stage
Construction
Back-pull-out design according to ISO 2858
Casing design
Single or double volute casing
Impeller
closed or free-flow impeller (Type RCFKu)
Bearing lubrication
Grease or oil lubrication
Installation versions
Base frame welded or base plate cast
Ambient temperature
-20°C to 60°C
Solid content limit value
approx. 5 %

Chemically aggressive, even contaminated, media throughout the whole range of chemical processing technology, surface coating technology, environ-mental engineering and other areas of industry.

  • Polyvinyliden-Fluoride PVDF
  • Polytetrafluorethylene PTFE
  • Polypropylene PP
  • Polyethylen PE 1000 UHMW-PE
  • Polyethylene PE 1000 R
  • Drain of volute casing
  • Flushing in different versions
  • Temperature and vibration monitoring
  • Flange connections according to international standards
  • Thermosyphon system
  • Quench system
  • Pump accessories
